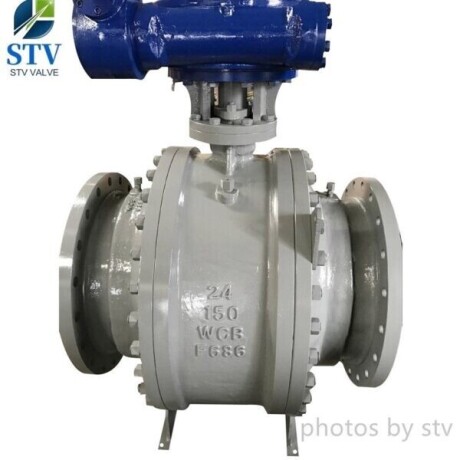

Model:STV-Q347F-150LB-WCB-24″

Under the action of medium pressure, Ansi Cast Steel Ball Valve can produce a certain displacement and press tight on the sealing surface at the outlet end to ensure the sealing of the outlet end. The floating ball valve has a simple structure and good sealing performance, but the load of the ball subjected to the working medium is all transmitted to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the spherical medium. This structure is widely used in high and medium pressure ball valves.

It is mainly used in various high-pressure medium conveying pipelines in chemical, metallurgy, petroleum, pharmaceutical and other industries. The applicable temperature is -196~450 °C; driving mode: manual, pneumatic, electric, hydraulic, turbine, etc.; nominal diameter: 1/2″~12″; nominal pressure: 150LB~1500LB; applicable medium: water, gas, oil, natural gas and acid-alkaline corrosion medium.

STV Valve Technology Group Co., Ltd is a professional leader China 150LB Cast Steel Ball Valve,24 Inch API 6D Cast Steel Trunnion Mounted Ball Valves,API 6D Cast Steel Trunnion Mounted Ball Valves,2-Piece Trunnion Mounted Ball Valve,Cast Steel Trunnion Mounted Ball Valve Manufacturer with high quality and competitive price.

Please contact our sales@stvvalve.com for other materials and details.

Date Sheet:Cast Steel Ball Valve,Full Bore,Trunnion Mounted,24 Inch,150LB

Description

Design Features

Side Entry Split Body Design

Fire Safe Design ,Antistatic Device

Stem Blow-Out Proof Design

Anti-Static Design

Fugitive Emission Design

The Stem Wear Proof And Misoperation Proof

ISO 5211 Mounting Flange For Actuation .

Stem Extension For Underground Service.

Technical Specification

Application:

Design & Manufacture according to:API 6D

Face to Face according to:ASME B16.10

Flange Dimensions according to : ASME B16.5

Pressure & Temperature according to:ASME B16.34

Test & Inspection according to:API 6D / API 598

Visual Inspection according to:MSS SP-55

Marking according to:MSS SP-25

Main Material Parts:

Note:The Dimension of connecting flange can be design according to customer’s requirements.

Manufacturing to NACE MR-01-75 on request.

What is the difference between a trunnion ball valve and floating ball valve?

The ball in a trunnion ball valve is supported by the stem and trunnion, reducing the operating torque, while the seats are spring loaded. In a floating ball valve, the ball floats and the seats are fixed while the ball is only supported by the stem.
