Model:Q41F-150LB-WCB

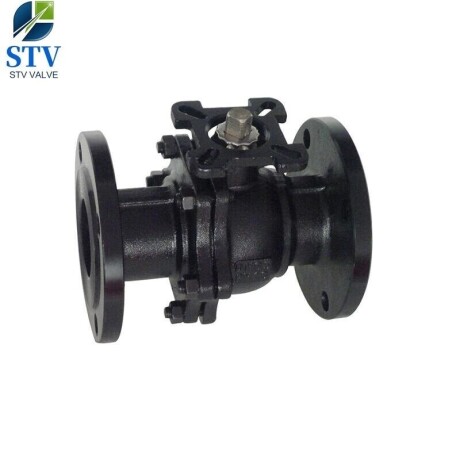

Carbon Steel Flange Ball Valve is  full bore 2 piece Ball Valve.150 lB Flange ,it is a  WCB body and stainless steel 316/304 ball, with TFM seats for High Temperatures.

The valve conforms to ISO 5211 direct mounting pad for easy actuation and is supplied with a padlock able lever handle designed.

The valve offers safe operation in many industrial and chemical applications and is ideal for both manual isolation and easy to actuate having low torque characteristics coupled with high flow rates.

STV Valve Technology Group Co., Ltd is a professional leader China Carbon Steel Ball Valve,Carbon Steel Split Body Ball Valve,Flanged Ball Valves,Flanged Carbon Steel Ball Valve With Locking Device,Flanged Full Port Carbon Steel Ball Valve,China WCB ANSI 150 Flanged Fire Safe Ball Valve Manufacturer with high quality and competitive price.

Please contact our sales@stvvalve.com for other materials and details.

Date Sheet: Carbon Steel Flange Ball Valve,DN50,150LB,304 TRIM,RF END

Description

Available in stainless steel or carbon steel
Body and end are investment case
Self-adjusting stem packing
Blow-out proof stem design
Double 100 air tested under water at 100 psi
Working pressure ANSI 150
Temperature range: -29°C to +120°C
ISO 5211 mounting pad
End cap type: flange end (ANSI 150)
Flange dimension: face-to-face ANSI
B16.10; flange connection ANSI B16.50

Technical Specifications:

Design & Manufacture standard: API 6D, API 608

Pressure & Temperature standard: ASME B16.34

Face to face dimension standard: ASME B16.10

Flange standard: ASME B16.5, ASME B16.47

Test & Inspect standard: API 598, API 6D
