China API 594 2205 Wafer Check Valve, Wafer Check Valve Supplier Offers 6 Inch Check Valve, 2205 Dual Plate Wafer Check Valve Supplier In China, 300LB Wafer Check Valve, Rised Face Flanged  Dual Plate Wafer Check Valve,2205 Dual Plate Wafer Check Valve Manufacture.

Description

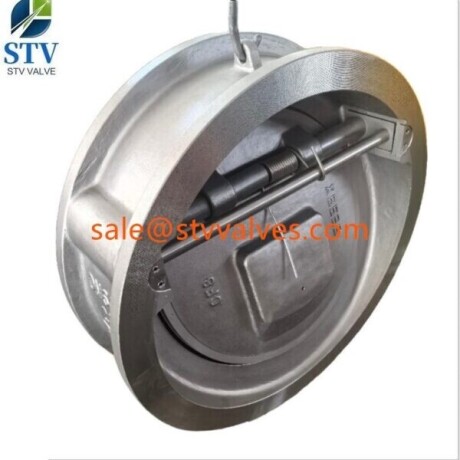

Product name: 2205 Wafer Check Valve,300LB,6 Inch,RF End
Design: Api 594.
Material: 2205
Nominal size: 6Inch.
Nominal pressure: Class300 LB.
End Connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Size: from 2″ to 48″
Pressure: 150 – 1500LB
Material: we can offer valves carried out in Duplex S31803、Super Duplex S32750、Super Duplex S32760
1A、、2A、3A、4A、5A、6A、1B、1C
CD4MCu、CD4MCuN、CD3MCuN、CE8MN、CD6MN、CD3MN、CE3MN、CD3MWCuN
F51、F53、F55、F60
Design and production standard: API 594 or DIN
Distance between flanges: ASME B16.10, EN558, DIN3202
Connected in accordance with standard: ANSI, API, DIN
Test standard: API598, API 600, ISO5208
Medium: The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.
Working temperature: from -46ºC or -50ºC (stainless steel constructions) and -29ºC or -46ºC (carbon steel constructions) up to 600℃
